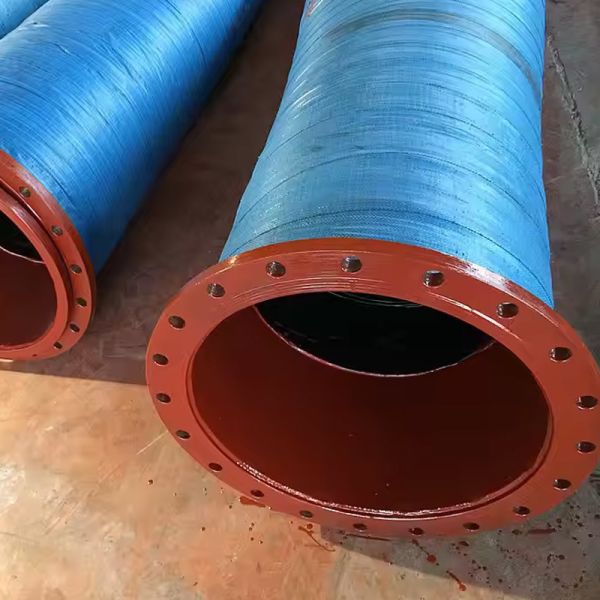

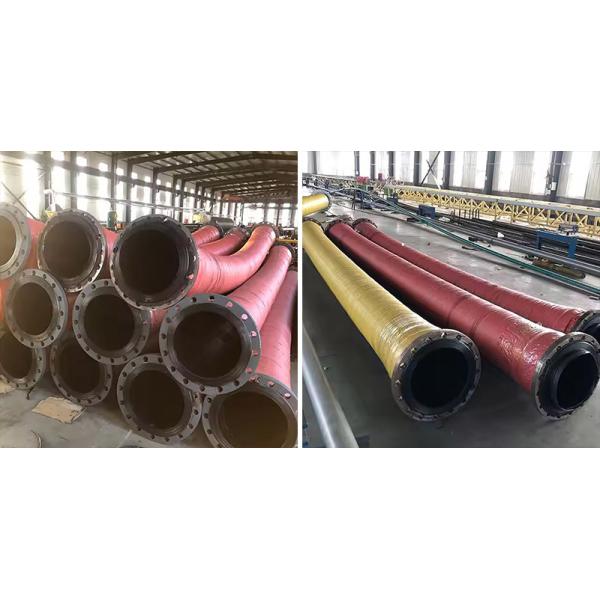

Heavy Duty Slurry Suction Hose 0.4mpa To 2.5mpa

Brand Name : Hongruntong Marine

Model Number : HM-SSH58

Certification : ABS, DNV, RMRS, CCS, LR, BV, SGS, V-Trust

Place of Origin : Beijing, China

MOQ : 1

Price : $11-$185

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 1582 Pcs Per Month

Delivery Time : 5-7 Work Days

Packaging Details : Wooden Pallets, Wooden Box

Product Name : Slurry Suction Hose

Material : Natural Rubber

Reinforcement : High Strength Synthetic Cord with Helix Wire

Diameter : 152mm-1300mm

Working pressure : 0.4MPa to 2.5MPa

End Connections : Built In Steel Flanges

Temperature : -40℃ to 80℃

Advantages : Wear Resistance

Feature : Corrosion Resistance

Application : for Suction and Discharge Of Abrasive Materials In Slurry Applications

Keywords : Rubber Hose

Contact Now

Slurry Suction Hose For Heavy Duty Material Suction And Discharge In Slurry Applications 0.4mpa To 2.5mpa
Description

Slurry suction hoses are engineered for extreme abrasion resistance, featuring reinforced steel wire helix and high-grade rubber or polyurethane liners to withstand sand, gravel, and corrosive slurries. Their smooth inner bore minimizes flow resistance, while anti collapse construction ensures reliable performance under high suction pressure. These hoses are widely used in mining, dredging, and industrial waste transport, offering superior durability in harsh environments.

The key advantages include extended service life, reduced maintenance costs, and compatibility with high-pressure pumps. Their flexibility and kink-resistant design allow easy installation, while static-conductive options enhance safety in explosive zones. Whether for dewatering, slurry pumping, or dredging operations, these hoses deliver unmatched efficiency and reliability.

Heavy Duty Slurry Suction Hose 0.4mpa To 2.5mpa

Heavy Duty Slurry Suction Hose 0.4mpa To 2.5mpa

Construction

Inner Liner

Natural rubber in various thicknesses and compounds

Reinforcement

Nylon cord fabric with spring steel wire helix

Outer Cover

Black abrasion and UV-resistant natural rubber
Specifications

Hose Size

50~1500

Hose Length

Up to 12m

Pressure Rating

5-40bar

Temperature Rating

-40°C to +80°C

Safety Factor

4:1

Bend Radius

8 to 10 times diameter (Standard)

End Fittings

Fixed flanges, swivel flanges, plain cut, cuffed, swollen, custom fittings

Flange Types

D, E, F, ANSI 150, ANSI 300, Custom

Materials

Stainless steel, Hot-dipped galvanised, Carbon steel, Custom paint
Key Features
Food Grade Compliance

NSF FDA approved materials for potable water and food processing applications.

Quick Connect Compatibility

Engineered to work with industry-standard camlock, flange, and Victaulic coupling systems.

Non Marking Compounds

Special outer cover formulations prevent surface staining on sensitive job sites.

Vibration Dampening

Reduces harmonic vibration transmission to extend pump and equipment life.

Applications
  • Concrete pumping residue
  • Sewage sludge handling
  • Industrial waste suction
  • Contaminated soil removal
Advantages
Three Decade Specialization

Exclusive focus on slurry hose R&D and production since 1993 with accumulated technical know-how

Advanced Compound Formulations

Proprietary rubber/polyurethane blends optimized for different abrasion levels (20+ material recipes)

In House Steel Reinforcement

Custom-engineered high-carbon steel wire helix production for perfect tension control

Complete Vertical Integration

Full control from raw material processing to final assembly ensures consistent quality

Heavy Duty Slurry Suction Hose 0.4mpa To 2.5mpa

Heavy Duty Slurry Suction Hose 0.4mpa To 2.5mpa

Heavy Duty Slurry Suction Hose 0.4mpa To 2.5mpa

Heavy Duty Slurry Suction Hose 0.4mpa To 2.5mpa

FAQ
  1. 1. Food grade compliance?

    NSH/FDA-certified white rubber compounds available.

  2. 2. Bore smoothness standard?

    Ra <6.3μm surface roughness for optimal flow (tested per ISO 4287).

  3. 3. Flame retardant options?

    MSHA-approved self-extinguishing compounds (<70mm/min burn rate).

  4. 4. How to detect wear?

    Visual indicators (colored layers) or optional RFID wear sensors.
